Domain-Driven Design. Context Maps

In the previous post we saw the first strategic steps and how we broke down the complexity of the business into Domains, Subdomains and Bounded Contexts. Each Bounded Context contains or has the technology, programming language and minimum architecture necessary to satisfy the business requirements of its context through a domain model.

The relationships between Bounded Contexts are called Context Maps and the rules necessary to map/translate a domain model from one context to another:

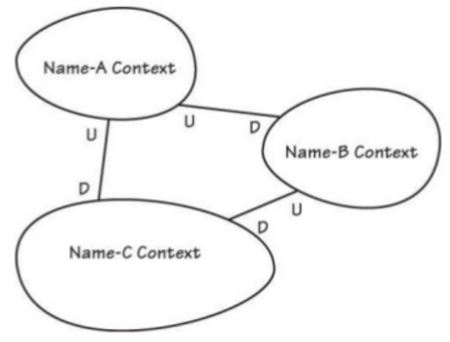

Translation Map. Once the Bounded Contexts have been identified, we must establish, according to the needs of each case, the type of relationship between them, marking the direction of information flow through Upstream (exposure of services) and Downstream (consumer of services):

Evans, describes organizational and integration patterns that describe the types of relationship between Bonded Contexts

• Partnership: Both Downstream and Upstream teams have a strong and close dependency, making it necessary to jointly plan and synchronize updates to both Bounded Contexts. Development must take into account the needs of both contexts through exhaustive coordination between the teams.

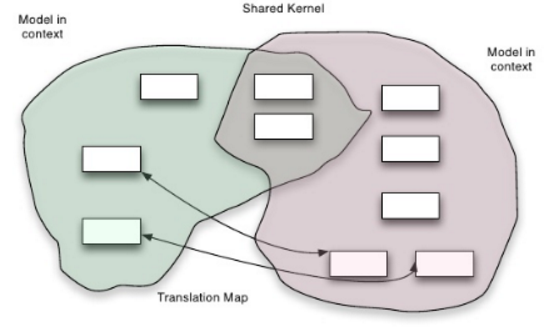

• Shared Kernel: Bounded Contexts that share/reuse part of the domain model, with an interdependence or a shared common area. These shared elements should not be modified without consulting the affected teams:

Source: Taming Complex Domains with Domain Driven Design.</span>

• Customer-Supplier Development: A team manages the services of the Bounded Context (Upstream) providing support on demand according to the needs of the team that manages the Bounded Context that requests the resources (Downstream). The exposure of services is prioritized and negotiated in advance to avoid dependencies in the evolutionary development of the teams that consume them.
• Conformist: The team manages and publishes the services (Upstream) in the Bounded Context in a way that is misaligned with the evolutionary development of any other context. The team that manages the consumer Bounded Context (Downstream) adheres to and conforms to the modeling represented in the services, without the need to make them compatible with the local/own domain modeling.

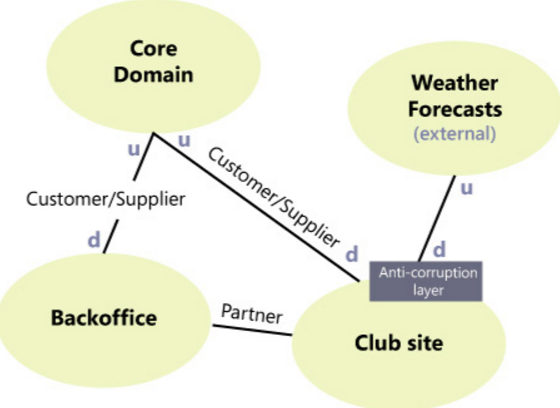

Source: Discovering the Domain Architecture.

• Separate Ways: Independent Bounded Context without any type of relationship between any other. There are no integrations or relationships of any kind between the development teams.
• Bif Ball of Mud: Monolith or Legacy Code not disaggregated encapsulated/isolated in a Bounded Context sharing its services. Controlling its growth and advising to extract it into new Bounded Context generating new Context Maps between the existing ones.

Technical integration patterns between Bounded Contexts

• Open Host Service (OHS): Defines an access protocol to the system or services for the integration of the requirements. It usually needs a common publication language for interaction between the domain models. For example RPC or REST through API. Although it can be implemented through a messaging middleware such as RabbitMQ.
• Published Language (PL): Common language for translation between the models that are going to interact. For example JSON or XML. Normally associated with OHS. The advantage of using REST services is that in each request you can specify the PL by configuring the desired content type.
• Anticorruption Layer (ACL): Isolated layer that manages the mapping or translations between the domain models of the Bounded Contexts to maintain compatibility between them.

Source: Strategic Domain Driven Design with Context Mapping.

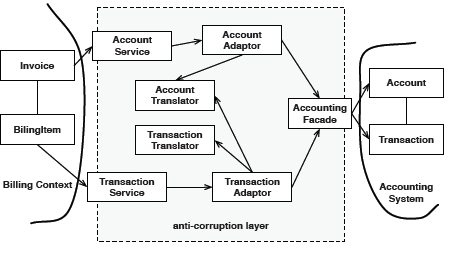

In this layer, the interfaces exposed as domain services are implemented.

Both the Adaptor and the Translator of each entity of the model that we want to translate or make compatible.

Using Facade and through HttpClient:

Source: Domain-Driven Design.

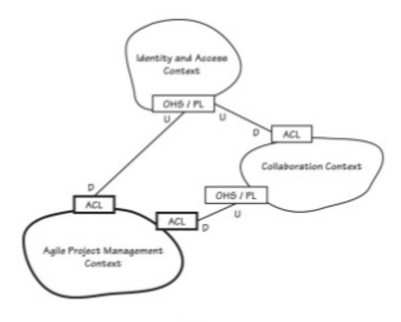

Adaptor can be replaced by new Repository implementations using HttpClient for access to the external repository via API. In the following diagram we see the Bounded Contexts and their integration points through OHS and PL using ACL to map and translate the domain model establishing compatibility for each type of entity:

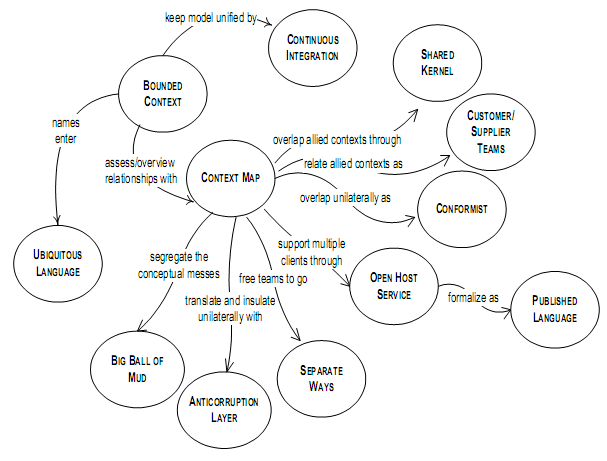

Graphic summary of all the concepts:

So far I cover up to chapter 5 of Implementing Domain-Driven Design by Vaughn Vernon. The rest focuses on the tactical aspects of DDD.

Do you think there is any important strategic aspect in DDD that I do not mention in both posts
